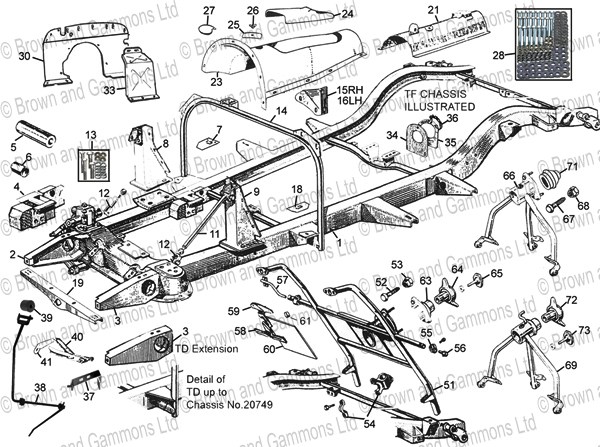

Chassis. Bulkhead & fittings. Spare wheel carrier

Image for Chassis. Bulkhead & fittings. Spare wheel carrier

Item

Description

Action

1
Image for TD CHASSIS FRAME - NLA
TD CHASSIS FRAME - NLA

Product Code: 135886

1
Image for TD CHASSIS FRAME LHD - NLA
TD CHASSIS FRAME LHD - NLA

Product Code: 136016

1
Image for TF CHASSIS FRAME RHD - NLA
TF CHASSIS FRAME RHD - NLA

Product Code: 500934

1
Image for TF CHASSIS FRAME LHD - NLA
TF CHASSIS FRAME LHD - NLA

Product Code: 500935

2
Image for FRONT EXT TO CHASSIS RH TD - NLA
FRONT EXT TO CHASSIS RH TD - NLA

Product Code: 135893

2
Image for FRONT EXT TO CHASSIS RH TF - NLA
FRONT EXT TO CHASSIS RH TF - NLA

Product Code: 500930

3
Image for FRONT EXT TO CHASSIS LH TD NLA
FRONT EXT TO CHASSIS LH TD NLA

Product Code: 135894

3
Image for FRONT EXT TO CHASSIS LH TF - NLA
FRONT EXT TO CHASSIS LH TF - NLA

Product Code: 500931

3
Image for FRONT EXT TO CHASSIS LH TD NLA
FRONT EXT TO CHASSIS LH TD NLA

Product Code: 135894

4
Image for PEDAL BOX ASSEMBLY RHD TD TF
PEDAL BOX ASSEMBLY RHD TD TF

Product Code: 500586

£149.20

£124.33

each x

Has been superseded by
Image for CHASSIS TUBE  RHD & LHD PEDALS TD TF

£31.14

£25.95

each x

5
Image for CHASSIS TUBE  RHD & LHD PEDALS TD TF

£31.14

£25.95

each x

6
Image for BUSH  CROSS SHAFT TD/TF LHD
BUSH CROSS SHAFT TD/TF LHD

Product Code: AAA5531

£7.50

£6.25

each x

7
Image for RUBBER PAD PEDAL BOX/FLOOR TDF
RUBBER PAD PEDAL BOX/FLOOR TDF

Product Code: 136605

£6.79

£5.66

each x

8
Image for BULKHEAD STIFFENER BKT RH - NLA
BULKHEAD STIFFENER BKT RH - NLA

Product Code: 136156

9
Image for BULKHEAD STIFFENER BKT LH - NLA
BULKHEAD STIFFENER BKT LH - NLA

Product Code: 136157

11
Image for BULKHEAD STAY TUBE - NLA
BULKHEAD STAY TUBE - NLA

Product Code: 136153

13
Image for BOLT KIT STAY TUBES-CHASS TD/T
BOLT KIT STAY TUBES-CHASS TD/T

Product Code: TDF1062

£11.88

£9.90

KIT x

15
Image for BRACKET RH ROLLBAR TO BODY T
BRACKET RH ROLLBAR TO BODY T

Product Code: 180115

£27.60

£23.00

each x

16
Image for BRACKET LH ROLLBAR TO BODY T
BRACKET LH ROLLBAR TO BODY T

Product Code: 180116

£27.60

£23.00

each x

18
Image for RUBBER PAD FLOORBOARD/ROLL BAR
RUBBER PAD FLOORBOARD/ROLL BAR

Product Code: 127057

£9.54

£7.95

each x

19
Image for SUPPORT MEMBER FOR RADIATOR - NLA
SUPPORT MEMBER FOR RADIATOR - NLA

Product Code: 135919

24
Image for GEARBOX RUBBER COVER TD TF
GEARBOX RUBBER COVER TD TF

Product Code: 136711

£44.70

£37.25

each x

25
Image for ACCESS PLATE FOR G/BOX D/STICK
ACCESS PLATE FOR G/BOX D/STICK

Product Code: 127041

£21.10

£17.58

each x

26
Image for WING NUT FOR ACCESS PLATE
WING NUT FOR ACCESS PLATE

Product Code: 128813

27
Image for COVER MASTER CYLINDER TF
COVER MASTER CYLINDER TF

Product Code: 60464

Has been superseded by
Image for INSP. COVER M/CYLINDER TA TB TC TD TF NOT LHD

£21.20

£17.67

each x

28
Image for BOLT KIT BULKHEAD TO BODY TD
BOLT KIT BULKHEAD TO BODY TD

Product Code: TD1065

£55.76

£46.47

KIT x

30
Image for FOOT PLATE TD & TF RHD
FOOT PLATE TD & TF RHD

Product Code: 136267

£164.10

£136.75

each x

34
Image for STEERING COL GAITER TD/TF
STEERING COL GAITER TD/TF

Product Code: 136678

£37.96

£31.63

each x

35
Image for TD-TF Steering column gaiter cover plate

£21.00

£17.50

each x

36
Image for CLAMP STEERING COLUMN GAITER
CLAMP STEERING COLUMN GAITER

Product Code: ACA5243

£1.80

£1.50

each x

37
Image for BRACKET STARTER SWITCH
BRACKET STARTER SWITCH

Product Code: 136683

£15.59

£12.99

each x

38
Image for ACCELERATOR PEDAL RHD TD TF
ACCELERATOR PEDAL RHD TD TF

Product Code: 136298

£139.03

£115.86

each x

39
Image for PEDAL ROLLER T TYPE
PEDAL ROLLER T TYPE

Product Code: 54394

£16.69

£13.91

each x

40
Image for SPRING-ACC PEDAL RETURN XPAG
SPRING-ACC PEDAL RETURN XPAG

Product Code: 53682

£10.20

£8.50

each x

41
Image for Bracket - SPRING STARTER MOTOR
Bracket - SPRING STARTER MOTOR

Product Code: 53683

£16.74

£13.95

each x

41
Image for USE 53683
USE 53683

Product Code: X17254

Has been superseded by
Image for Bracket - SPRING STARTER MOTOR
Bracket - SPRING STARTER MOTOR

Product Code: 53683

£16.74

£13.95

each x

52
Image for WHEEL STUD 1/2 INCH UNF TD & TF
WHEEL STUD 1/2 INCH UNF TD & TF

Product Code: ATB4097

TD to chassis 12284

£11.93

£9.94

each x

52
Image for WHEEL STUD-1/2 INCH BSF EARLY TD
WHEEL STUD-1/2 INCH BSF EARLY TD

Product Code: ATB4162

TD from chassis 12285

£10.02

£8.35

each x

53
Image for WHEEL NUT UNF TD 12285 ON & TF
WHEEL NUT UNF TD 12285 ON & TF

Product Code: ATB4100

TD from chassis 12285

£4.56

£3.80

each x

53
Image for Wheel nut  BSF TD to chassis no 12284
Wheel nut BSF TD to chassis no 12284

Product Code: ATB4163

TD to chassis 12284

£6.36

£5.30

each x

56
Image for PLUG FOR S/WHEEL CARRIER TUBE
PLUG FOR S/WHEEL CARRIER TUBE

Product Code: 139089

£29.99

£24.99

each x

57
Image for BRACKET No PLATE TD RHD
BRACKET No PLATE TD RHD

Product Code: 139084

£63.70

£53.08

each x

57
Image for BRACKET No PLATE TD LHD
BRACKET No PLATE TD LHD

Product Code: 139085

£79.50

£66.25

each x

58
Image for HOLDER FOR NO. PLATE - TD - NLA
HOLDER FOR NO. PLATE - TD - NLA

Product Code: 135004

59
Image for BRACKET NO.PLT.LAMP MGA TD  TF
BRACKET NO.PLT.LAMP MGA TD TF

Product Code: AAA2179

£15.48

£12.90

each x

60
Image for BACKING - REAR NUMBER PLATE TD
BACKING - REAR NUMBER PLATE TD

Product Code: 136292

£47.22

£39.35

each x

64
Image for SPARE WHEEL RETAINER ASSY TC/D
SPARE WHEEL RETAINER ASSY TC/D

Product Code: MG515

£91.44

£76.20

each x

65
Image for BADGE SPARE WHEEL BROWN/CREAM TA-TC

£72.60

£60.50

each x

67
Image for WHEEL STUD 1/2 INCH UNF TD & TF
WHEEL STUD 1/2 INCH UNF TD & TF

Product Code: ATB4097

£11.93

£9.94

each x

68
Image for WHEEL NUT UNF TD 12285 ON & TF
WHEEL NUT UNF TD 12285 ON & TF

Product Code: ATB4100

£4.56

£3.80

each x

71
Image for SPARE WHEEL ADAPTOR W/W TD
SPARE WHEEL ADAPTOR W/W TD

Product Code: ACG5008A

Has been superseded by
Image for SPARE WHEEL ADAPTOR W/W T SERIES
SPARE WHEEL ADAPTOR W/W T SERIES

Product Code: ACG5008B

£87.60

£73.00

each x

71
Image for SPARE WHEEL ADAPTOR W/W T SERIES
SPARE WHEEL ADAPTOR W/W T SERIES

Product Code: ACG5008B

£87.60

£73.00

each x

72
Image for SPARE WHEEL KNOCK-ON TF
SPARE WHEEL KNOCK-ON TF

Product Code: ACG5014

£91.44

£76.20

each x

73
Image for RADIATOR BADGE MGA TF
RADIATOR BADGE MGA TF

Product Code: ARH900

£34.44

£28.70

each x

Products not on diagram

Image for S/WHEEL ADAPTOR WELD RING WWTD
S/WHEEL ADAPTOR WELD RING WWTD

Product Code: ACG5008C

£51.00

£42.50

each x

Image for Bolt Kit TD TF
Bolt Kit TD TF

Product Code: TDF1063

£7.19

£5.99

KIT x

Image for Accelerator Pedal LHD TD TF - USED
Accelerator Pedal LHD TD TF - USED

Product Code: 136624U

£90.00

£75.00

each x
