CYLINDER HEAD, VALVES & GUIDES

The original TB TC XPAG cylinder head had “oval” water holes in the face and used 1/2“ reach spark plugs. To obtain more performance from your XPAG engine for fast road or competition use we can offer a fully gas flowed and polished head with modified inlet ports and combustion chamber in addition to the fitting of the hard inlet valve seats. It is usual to fit the larger size valves when modifying a cylinder head. As the work is done to order only, either size valves can be used. Bronze valve guides can be fitted if the engine is to be used for competition purposes.

ROCKER GEAR

The TB TC were fitted with shorter bosses on the straight rockers 1, 4, 5, & 8. The longer rocker shaft was fitted to the later type angle rockers

Cylinder head - valves & guides. Fittings

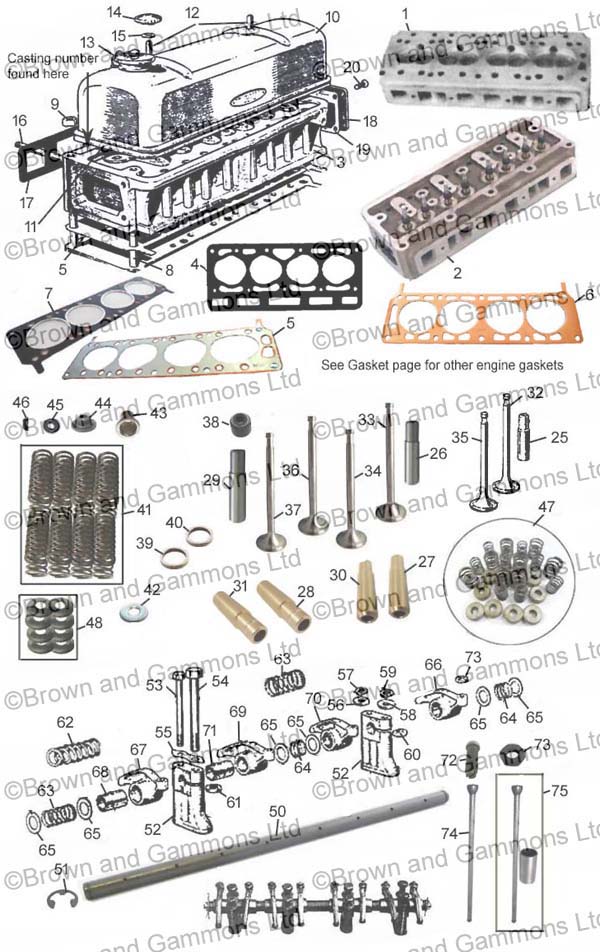

Item

Description

Action

'LAYSTALL' Alloy head TB-TC-TD-TF (T type)

Product Code: LCH1000

£2,394.00

£1,995.00 ex. VAT

each x

USE LCH1000

Product Code: SA2204/7

Has been superseded by

'LAYSTALL' Alloy head TB-TC-TD-TF (T type)

Product Code: LCH1000

£2,394.00

£1,995.00 ex. VAT

each x

MOD CUSTOMERS OWN CYL HEAD WITH 31 & 33MM Valves

Product Code: SA2203-4

£807.84

£673.20 ex. VAT

KIT x

HEAD L/F GUIDES & VALVES 34/36 *350*

Product Code: SA2203-5

£832.54

£693.78 ex. VAT

each x

MOD CUSTOMERS OWN CYL HEAD WITH 31 & 33MM Valves

Product Code: SA2203/4

Has been superseded by

MOD CUSTOMERS OWN CYL HEAD WITH 31 & 33MM Valves

Product Code: SA2203-4

£807.84

£673.20 ex. VAT

KIT x

HEAD L/F GUIDES & VALVES 34/36 *350*

Product Code: SA2203/5

Has been superseded by

HEAD L/F GUIDES & VALVES 34/36 *350*

Product Code: SA2203-5

£832.54

£693.78 ex. VAT

each x

Cylinder head Gasket (TA) (MPJG)

Product Code: TA749

£126.84

£105.70 ex. VAT

each x

Head gasket Late TD-TF round water holes 1250cc

Product Code: AAA3075

£104.11

£86.76 ex. VAT

each x

Head gasket oval water holes 1250cc XPAG

Product Code: AAA5841

£73.56

£61.30 ex. VAT

each x

Head gasket XPEG TF 1500

Product Code: AEF140

£50.40

£42.00 ex. VAT

each x

Stud cylinder head T Type

Product Code: AAA5512

V grade steel torque to 60lbs

£10.74

£8.95 ex. VAT

each x

NUT CYLINDER HEAD EN8 STEEL TTYPE

Product Code: AAA5208

EN8 Steel

£3.48

£2.90 ex. VAT

each x

Rocker cover alloy with cap TB & TC

Product Code: SA2407

£201.80

£168.17 ex. VAT

each x

Rocker cover gasket TA (MPJG)

Product Code: TA706

£13.74

£11.45 ex. VAT

each x

ROCKER COVER GASKET TB-TF

Product Code: X22526

£11.94

£9.95 ex. VAT

each x

STUD-ROCKER COVER TTYPE

Product Code: AAA5552

Rocker cover to head

£4.98

£4.15 ex. VAT

each x

OIL FILLER CAP - ENGINE

Product Code: AAA5835

For original cover only

£38.30

£31.92 ex. VAT

each x

TB-TC-TD-TF Knurled rocker cover nut

Product Code: AAA5674

£17.72

£14.77 ex. VAT

each x

WASHER ENGINE BREATHER MGB&A

Product Code: 2K4958

Nut to cover

£0.31

£0.26 ex. VAT

each x

STUD MANIFOLD-HEAD XPAG/XPEG

Product Code: AAA5773

£5.76

£4.80 ex. VAT

each x

TA Exhaust manifold to head (MPJG)

Product Code: TA760

£13.80

£11.50 ex. VAT

each x

TB-TC-TD-TF Exhaust manifold to head gasket

Product Code: X22581

£7.08

£5.90 ex. VAT

each x

XPAG-XPEG Cylinder head end plate

Product Code: AAA3114

£11.94

£9.95 ex. VAT

each x

GASKET HEAD END PLATE T-TYPE

Product Code: X22438

£2.59

£2.16 ex. VAT

each x

REAR COVER PLATE SCREW T TYPE

Product Code: CA1122

£4.14

£3.45 ex. VAT

each x

TA Inlet Valve guide (MPJG)

Product Code: TA182

£22.26

£18.55 ex. VAT

each x

VALVE GUIDE INLET XPAG/XPEG

Product Code: AAA5623

£4.68

£3.90 ex. VAT

each x

Valve guide bronze Inlet T type (58.8mm)

Product Code: AAA5623BRZ

£8.34

£6.95 ex. VAT

each x

Bronze Inlet valve guide machined to fit top hat seal

Product Code: AAA5623BRZMOD

£10.74

£8.95 ex. VAT

each x

VALVE GUIDE EXHAUST T TYPE

Product Code: AAA5624

£4.68

£3.90 ex. VAT

each x

Valve guide bronze exhaust T type (54mm)

Product Code: AAA5624BRZ

£8.34

£6.95 ex. VAT

each x

Bronze Exhaust valve guide machined to fit top hat seal

Product Code: AAA5624BRZMOD

£10.74

£8.95 ex. VAT

each x

TA Inlet valve (MPJG)

Product Code: TA100

£44.34

£36.95 ex. VAT

each x

INLET VALVE 33mm TB TC TD

Product Code: X22548

£13.62

£11.35 ex. VAT

each x

Inlet valve XPAG-XPEG 36mm

Product Code: 168426

£15.54

£12.95 ex. VAT

each x

TA Exhaust valve (MPJG)

Product Code: TA140

£41.94

£34.95 ex. VAT

each x

EXHAUST VALVE 31mm TB TC TD

Product Code: 168387

£13.14

£10.95 ex. VAT

each x

Exhaust valve XPAG-XPEG 34mm (214N)

Product Code: 168427

£18.42

£15.35 ex. VAT

each x

USE 168427

Product Code: 168427S

Has been superseded by

Exhaust valve XPAG-XPEG 34mm (214N)

Product Code: 168427

£18.42

£15.35 ex. VAT

each x

OIL SEAL VALVE STEM

Product Code: AEG327

£1.16

£0.97 ex. VAT

each x

USE AEG327

Product Code: GAC8037

Has been superseded by

OIL SEAL VALVE STEM

Product Code: AEG327

£1.16

£0.97 ex. VAT

each x

HARD STEEL VALVE INSERT 31mm

Product Code: GAC8031

£12.54

£10.45 ex. VAT

each x

HARD STEEL VALVE INSERT 33mm

Product Code: GAC8033

£12.54

£10.45 ex. VAT

each x

HARD STEEL VALVE INSERT 34mm

Product Code: GAC8034

£12.54

£10.45 ex. VAT

each x

HARD STEEL VALVE INSERT 36mm

Product Code: GAC8036

£12.54

£10.45 ex. VAT

each x

SPRING SET XPAG

Product Code: X24068K

£47.88

£39.90 ex. VAT

SET x

BTM COLLAR VALVE SPRINGS XPAG

Product Code: AAA5778

£4.69

£3.91 ex. VAT

each x

OIL SHROUD-VALVE STEM XPAG

Product Code: X24086

£11.80

£9.83 ex. VAT

each x

VALVE SPRING TOP RETAINER TTYP

Product Code: AAA5676

£6.72

£5.60 ex. VAT

each x

VALVE STEM OIL 'O' RING

Product Code: AEK113

£0.25

£0.21 ex. VAT

each x

Valve cotter XPAG (EACH)

Product Code: AAA3063

£2.76

£2.30 ex. VAT

each x

VALVE SPRING KIT TTYPE

Product Code: 168428C

£158.94

£132.45 ex. VAT

KIT x

VALVE SEAT SET (8) TTYPE

Product Code: 168428B

Nut to cover

£13.56

£11.30 ex. VAT

SET x

ROCKER SHAFT TBTC & EARLY TD SHORT

Product Code: SA2232/1

Has been superseded by

ROCKER SHAFT TBTC & EARLY TD SHORT

Product Code: SA2232-1

£25.80

£21.50 ex. VAT

each x

ROCKER SHAFT 14.75 INCH TD/TF

Product Code: SA2232/2

Has been superseded by

ROCKER SHAFT 14.75 INCH TD/TF

Product Code: SA2232-2

£26.28

£21.90 ex. VAT

each x

SPRING CLIP ROCKER SHAFT XPAG

Product Code: AAA5517

£1.14

£0.95 ex. VAT

each x

R/SHAFT SUPPORT PILLAR XPAG

Product Code: AAA5691

£20.82

£17.35 ex. VAT

each x

XPAG-XPEG Rocker pillar shim set (1.6mm)

Product Code: AAA5691SHIM

£35.00

£29.17 ex. VAT

SET x

R/SHAFT SUPPORT PILLAR XPAG

Product Code: AAA5691

£20.82

£17.35 ex. VAT

each x

XPAG-XPEG Rocker pillar shim set (1.6mm)

Product Code: AAA5691SHIM

£35.00

£29.17 ex. VAT

SET x

BOLT 8mm ROCKER PILLAR TTYPE

Product Code: AAA5670

TA uses 8 TB TC uses 4

£4.98

£4.15 ex. VAT

each x

BOLT 10mm ROCKER PILLAR TTYPE

Product Code: AAA5692

£2.45

£2.04 ex. VAT

each x

LOCK WASHER PILLAR BOLTS XPAG

Product Code: AAA5693

£2.34

£1.95 ex. VAT

each x

WASHER - PLAIN 5/16 INCH (PACK 10)

Product Code: GHF301

Alternative to the original lock plate. Plain washer is needed to prevent damage to pillar by the spring washer

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL PLAIN WASHER 5/16 INCH

Product Code: GHF301SS

£0.18

£0.15 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

WASHER PLAIN 3/8 INCH (PACK 10)

Product Code: GHF302

£0.12

£0.10 ex. VAT

Pack of 10 x

SPRING WASHER 10MM

Product Code: GHF383

£0.14

£0.12 ex. VAT

each x

D SHAPED SPACER R/PILLER XPAG

Product Code: AAA5671

Piilars 1 & 4

£3.48

£2.90 ex. VAT

each x

ROUND SPACER R/PILLERS XPAG

Product Code: AAA5694

Piilars 2 & 3

£1.74

£1.45 ex. VAT

each x

SPACER SPRING LONG TB TC & EARLY TD

Product Code: X20428

SPACER SPRING MEDIUM TB TC & EARLY TD

Product Code: X20249

£11.94

£9.95 ex. VAT

each x

SPACER SPRING SHORT XPAG

Product Code: X19216

£18.50

£15.42 ex. VAT

each x

SPACER SPRING SHORT XPAG

Product Code: X19216

£18.50

£15.42 ex. VAT

each x
