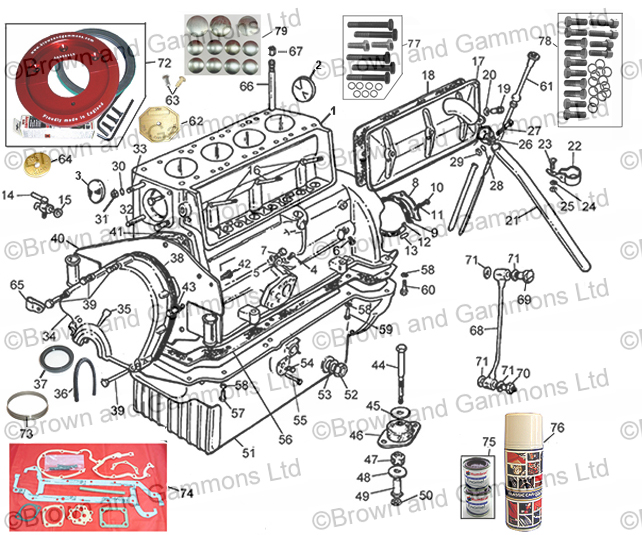

Engine external parts

Item

Description

Action

CYLINDER BLOCK - NLA

Product Code: SA2404/7

Secondhand only

Core plug large (steel) XPAG/XPEG

Product Code: AAA5561

£2.34

£1.95 ex. VAT

each x

Large T Type brass core plug

Product Code: AAA5561BRASS

£3.84

£3.20 ex. VAT

each x

Core plug (steel) T type MGA

Product Code: CA1056

£2.27

£1.89 ex. VAT

each x

Small T Type brass core plug

Product Code: CA1056BRASS

£2.88

£2.40 ex. VAT

each x

TA Core plug Mild steel large (MPJG)

Product Code: TA753

£8.34

£6.95 ex. VAT

each x

PLUG REAR OIL GALLERY XPAG

Product Code: X15393

PLUG FRONT OIL GALLERY XPAG

Product Code: X22732

£20.86

£17.38 ex. VAT

each x

WASHER FIBRE 3/8 INCH

Product Code: WF509

By pass hole plug

£0.58

£0.48 ex. VAT

each x

XPAG-XPEG Oil galley plug

Product Code: X22968

£1.80

£1.50 ex. VAT

each x

PLUG OIL GALLERY SIDE BLOCK T

Product Code: X20247

£16.92

£14.10 ex. VAT

each x

OIL THROWER REAR MAIN XPAG

Product Code: AAA6313

Upper oil thrower

£29.50

£24.58 ex. VAT

each x

GASKET UPPER OIL THROWER TD/TF

Product Code: X22518

£2.20

£1.83 ex. VAT

each x

BOLT CAMSHAFT THST PLATE XPAG

Product Code: AAA5326

Oil thrower to block

£1.18

£0.98 ex. VAT

each x

SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

Spring washer Oil thrower to block

£0.10

£0.08 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

Spring washer Oil thrower to block

£0.12

£0.10 ex. VAT

each x

DOWEL - OIL THROWER TO BLOCK - NLA

Product Code: X21044

DOWEL SET (2)

Product Code: AEG3101

Dowel - clutch housing to block set

£2.34

£1.95 ex. VAT

SET x

DRAIN TAP XPAG BLOCK

Product Code: 3H2724

1/8 BSP thread

£36.40

£30.33 ex. VAT

each x

Plug and washer water drain T type engine

Product Code: 3H2724PLUG

£7.14

£5.95 ex. VAT

each x

WASHER FIBRE 3/8 INCH

Product Code: WF509

Water tap

£0.58

£0.48 ex. VAT

each x

STUD SIDE PLATE XPAG/XPEG

Product Code: AAA5595

£5.45

£4.54 ex. VAT

each x

TAPPET CHEST COVER PLATE - NLA

Product Code: X22337

TAPPET COVER GASKET TA

Product Code: TA752

£8.40

£7.00 ex. VAT

each x

SIDE PLATE GASKET TB-TF

Product Code: X24130

£9.48

£7.90 ex. VAT

each x

NUT SIDE PLATE XPEG/XPAG

Product Code: AAA5596

£9.58

£7.98 ex. VAT

each x

Copper Washer

Product Code: AEC346

Sleeve nut

£2.36

£1.97 ex. VAT

each x

BREATHING PIPE ENGINE TB/TC

Product Code: X24011

Side plate TC

£37.74

£31.45 ex. VAT

each x

BTM CLAMP - BREATHER PIPE XPAG

Product Code: AAA5770

£18.20

£15.17 ex. VAT

each x

BOLT FOR CLAMP -LOWER XPAG

Product Code: X15009

£0.53

£0.44 ex. VAT

each x

SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

Nut to clamp bolt

£0.10

£0.08 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

Nut to clamp bolt

£0.12

£0.10 ex. VAT

each x

FULL NUT 6mm x 1mm

Product Code: GHF212

£0.12

£0.10 ex. VAT

each x

TOP CLAMP - BREATHER PIPE XPAG

Product Code: AEB149

£27.19

£22.66 ex. VAT

each x

BOLT BEATHER CLAMP T TYPE

Product Code: CA1263

Upper

£0.85

£0.71 ex. VAT

each x

SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

£0.10

£0.08 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

£0.12

£0.10 ex. VAT

each x

FULL NUT 6mm x 1mm

Product Code: GHF212

£0.12

£0.10 ex. VAT

each x

SPRING/WSH SM/END C/ROD XPAG

Product Code: CA1283

Spring washer - Nut to water pump stud

£0.30

£0.25 ex. VAT

each x

Plain hex nut 8mm

Product Code: CA1126

Nut to water pump stud

£1.38

£1.15 ex. VAT

each x

Stud water pump mount (long)

Product Code: X20167

£7.32

£6.10 ex. VAT

each x

Bolt 8mm x 1mm x 25mm

Product Code: MET8125

£1.10

£0.92 ex. VAT

each x

COVER - TIMING CHAIN - NLA

Product Code: SA2423/2

INDICATOR - TDC - NLA

Product Code: X24291

Crankshaft oil seal rope type

Product Code: 602178A

£2.46

£2.05 ex. VAT

each x

Front crank oil seal TB-TC-TD-TF

Product Code: AEG133

£4.74

£3.95 ex. VAT

each x

Gasket timing chain cover TB-TC-TD & TF

Product Code: X24283

£4.20

£3.50 ex. VAT

each x

BOLT LONG TIMING CHAIN COVER

Product Code: AAA5231

£6.84

£5.70 ex. VAT

each x

BOLT SET TIMING COVER XPAG

Product Code: AAA5231/86

Has been superseded by

Timing cover bolt kit TB-TF

Product Code: EBK2003

£40.44

£33.70 ex. VAT

KIT x

BOLT MED TIMING CHAIN COVER

Product Code: AAA5286

£6.54

£5.45 ex. VAT

each x

SET SCREW 8mm x 1mm x 20mm

Product Code: MET8120

£0.66

£0.55 ex. VAT

each x

BOLT LONG TIMING CHAIN COVER

Product Code: AAA5231

£6.84

£5.70 ex. VAT

each x

BOLT SET TIMING COVER XPAG

Product Code: AAA5231/86

Has been superseded by

Timing cover bolt kit TB-TF

Product Code: EBK2003

£40.44

£33.70 ex. VAT

KIT x

BOLT MED TIMING CHAIN COVER

Product Code: AAA5286

£6.54

£5.45 ex. VAT

each x

SET SCREW 8mm x 1mm x 20mm

Product Code: MET8120

£0.66

£0.55 ex. VAT

each x

FRONT PLATE TB-TC

Product Code: X24136

£119.46

£99.55 ex. VAT

each x

GASKET MTG PLATE-BLOCK XPAG

Product Code: X22752

£2.59

£2.16 ex. VAT

each x

SET SCREW 8mm x 1mm x 20mm

Product Code: MET8120

Mounting plate to ]timing cover

£0.66

£0.55 ex. VAT

each x

BOLT MTG PLATE-BLOCK XPAG

Product Code: AAA5343

£0.95

£0.79 ex. VAT

each x

BOLT ENGINE MOUNT TA/B/C

Product Code: AAA565

£23.22

£19.35 ex. VAT

each x

BOLT ENGINE MOUNT TA/B/C

Product Code: AAA565

£23.22

£19.35 ex. VAT

each x

ENGINE MOUNT WASHER TA TB TC

Product Code: X22106

Mount plate to mount - Fit with concave side up

£9.60

£8.00 ex. VAT

each x

TA-TB-TC Engine mount

Product Code: AAA530

£34.74

£28.95 ex. VAT

each x

TA-TB-TC Engine mount rebound rubber

Product Code: AAA615

£15.54

£12.95 ex. VAT

each x

Washer lower engine mounting

Product Code: 73175

£2.34

£1.95 ex. VAT

each x

TA-TB-TC Engine mount sleeve nut lower

Product Code: AAA791

£17.94

£14.95 ex. VAT

each x

NUT 5/16 INCH BSF HEX

Product Code: AJD8105

Lock nut for sleeve nut engine mount

£0.30

£0.25 ex. VAT

each x

USE SA2411N

Product Code: SA2411

Has been superseded by

XPAG SUMP FINNED (5.96 LITRES)

Product Code: SA2411N

£595.14

£495.95 ex. VAT

each x

XPAG SUMP FINNED (5.96 LITRES)

Product Code: SA2411N

£595.14

£495.95 ex. VAT

each x

SUMP PLUG XPAG/XPEG ENGINE

Product Code: AAA5299

£16.14

£13.45 ex. VAT

each x

USE 6K431

Product Code: 213961A

Has been superseded by

COPPER WASHER

Product Code: 6K431

£0.90

£0.75 ex. VAT

each x

COPPER WASHER

Product Code: 6K431

For sump plug

£0.90

£0.75 ex. VAT

each x

PLUG FOR OIL HOLE - NLA

Product Code: JA5712

BOLT OIL PICK UP TO SUMP

Product Code: X22780

£1.14

£0.95 ex. VAT

each x

Lower end gasket set T Type ( not TA)

Product Code: EC390

£22.74

£18.95 ex. VAT

SET x

BOLT SUMP TO FRONT COVER TTYPE

Product Code: AAA5340

£2.11

£1.76 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

BOLT SUMP-BLOCK SHORT TB-TF

Product Code: LA7431

£2.10

£1.75 ex. VAT

each x

BOLT SUMP TO BLOCK LONG TB -TF

Product Code: AAA5341

£9.30

£7.75 ex. VAT

each x

TD-TF Dip Stick-XPAG-XPEG (With tube on the block)

Product Code: X24407

£45.78

£38.15 ex. VAT

each x

ENGINE NUMBER PLATE-BLANK T

Product Code: BGS1074

£11.34

£9.45 ex. VAT

each x

DRIVE RIVET ENGINE ID PLATE

Product Code: BGS1072A

£0.78

£0.65 ex. VAT

each x

DRIVE RIVET BRASS

Product Code: BGS1072AS

£0.66

£0.55 ex. VAT

each x

BRASS BUTTON TAG (TC STYLE)

Product Code: BGS2009

£7.14

£5.95 ex. VAT

each x

CLIP - CARB OVERFLOW PIPES TO FRONT PIPE - NLA

Product Code: AEH550

Stud cylinder head T Type

Product Code: AAA5512

£10.74

£8.95 ex. VAT

each x

NUT CYLINDER HEAD EN8 STEEL TTYPE

Product Code: AAA5208

£3.48

£2.90 ex. VAT

each x

OIL FEED PIPE-CYL/HD TO TD 9407

Product Code: SA2426

£61.70

£51.42 ex. VAT

each x

T type Banjo bolt oil pipe to head

Product Code: X19520

£11.90

£9.92 ex. VAT

each x

BANJO BOLT ROCKER OIL FEED T

Product Code: AAA5697

£11.21

£9.34 ex. VAT

each x

Copper Washer

Product Code: AEC346

£2.36

£1.97 ex. VAT

each x

Copper Washer

Product Code: AEC346

£2.36

£1.97 ex. VAT

each x

Copper Washer

Product Code: AEC346

£2.36

£1.97 ex. VAT

each x

Crankshaft rear oil seal kit XPAG- XPEG

Product Code: AAA5611X

£221.94

£184.95 ex. VAT

KIT x

SPEEDI SLEEVE KIT T TYPE

Product Code: AAA5612X

£47.94

£39.95 ex. VAT

SET x

Lower end gasket set T Type ( not TA)

Product Code: EC390

£22.74

£18.95 ex. VAT

SET x

Maroon engine Enamel paint 250ML

Product Code: GAC1019

£10.74

£8.95 ex. VAT

KIT x

MG MAROON ENGINE PAINT AEROSOL

Product Code: CCCEP1

£18.29

£15.24 ex. VAT

each x

Timing cover bolt kit TB-TF

Product Code: EBK2003

£40.44

£33.70 ex. VAT

KIT x

Sump to block bolt kit TB-TF

Product Code: EBK2002

£53.94

£44.95 ex. VAT

KIT x

XPAG/XPEG core plug set (inc camshaft core plug)steel

Product Code: EBK2020

£19.96

£16.63 ex. VAT

KIT x

Products not on diagram

TA Core plug brass small (MPJG)

Product Code: TA754

£8.34

£6.95 ex. VAT

each x

Dipstick MG TC

Product Code: X24164

£56.70

£47.25 ex. VAT

each x
