Bodyshells. Major sub-assemblies and panels

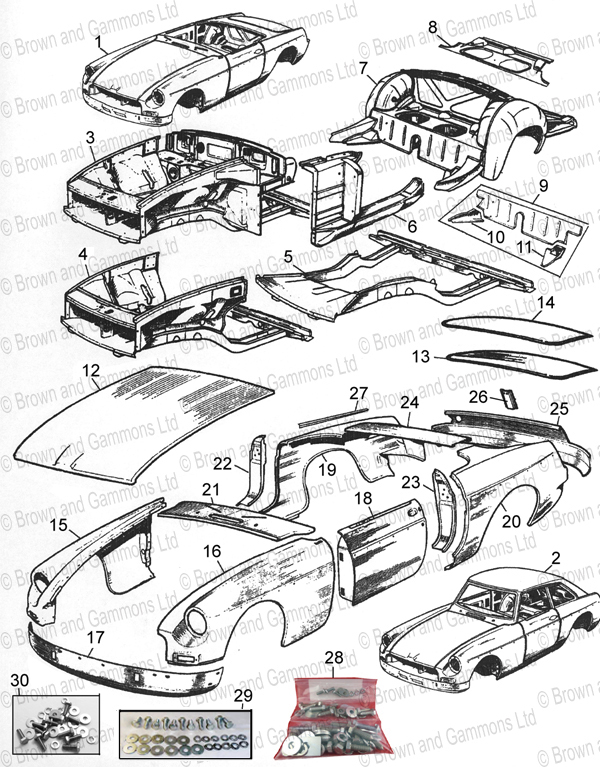

Image for Bodyshells. Major sub-assemblies and panels

Item

Description

Action

1
Image for 3 SYNCRO MGB ROADSTER BODYSHELL RHD 1962-1967

£14,728.24

£12,273.53

each x

1
Image for V8 ROADSTER BODYSHELL C/B RHD/LHD V8 conversion shell

£15,404.17

£12,836.81

each x

1
Image for V8 ROADSTER BODYSHELL RB RHD/LHD V8 conversion shell

£15,278.94

£12,732.45

each x

1
Image for Bodyshell MGB Chrome bumper V8 with RV8 underbody mods

£16,109.44

£13,424.53

each x

1
Image for Bodyshell MGB rubber to chrome bumper conversion

£14,728.24

£12,273.53

each x

1
Image for BODY SHELL PANELLED MGB C/B RHD GHN-4 138401-360300

£14,494.32

£12,078.60

each x

1
Image for BODY SHELL USA PANELLED MGB C/B NAS G-HN4 138401-360300

£14,494.32

£12,078.60

each x

1
Image for Bodyshell MGB RB RHD G-HN5 360301-410000

£14,945.88

£12,454.90

each x

1
Image for Bodyshell MGB RB LHD G-HN5 360301-410000

£14,494.32

£12,078.60

each x

1
Image for Bodyshell MGB RB RHD G-HN5 410001-437180

£14,494.32

£12,078.60

each x

1
Image for PANELLED R/BUMPER RDST SHELL RHD G-HN5 437181 on

£14,945.88

£12,454.90

each x

1
Image for PANELLED R/BUMPER RDST SHELL G-HN5 410001 on

£14,494.32

£12,078.60

each x

2
Image for 3 SYNCRO MGB GT BODYSHELL 1965-1967
3 SYNCRO MGB GT BODYSHELL 1965-1967

Product Code: AHH7383

£16,742.41

£13,952.01

each x

2
Image for Bodyshell MGB GT rubber bumper LHD G-HD5 361001 on

£16,347.58

£13,622.98

each x

2
Image for MGB GT V8 BODYSHELL R/BUMPER
MGB GT V8 BODYSHELL R/BUMPER

Product Code: BMH9020

£16,500.00

£13,750.00

each x

2
Image for MGB GT V8 BODYSHELL C/BUMPER RHD
MGB GT V8 BODYSHELL C/BUMPER RHD

Product Code: BMH9021

£17,615.40

£14,679.50

each x

2
Image for Bodyshell MGB GT Chrome bumper with RV8 underbody mods

£18,154.50

£15,128.75

each x

2
Image for BODYSHELL MGB GT RHD G-HD4 139471-361000

£16,347.58

£13,622.98

each x

2
Image for Bodyshell MGB GT chrome bumper LHD G-HD4 139471-361000

£16,347.58

£13,622.98

each x

2
Image for USE BMH9021
USE BMH9021

Product Code: HZA4251

Has been superseded by
Image for MGB GT V8 BODYSHELL C/BUMPER RHD
MGB GT V8 BODYSHELL C/BUMPER RHD

Product Code: BMH9021

£17,615.40

£14,679.50

each x

2
Image for Bodyshell MGB GT rubber bumper RHD G-HD5 361001-410350

£16,347.58

£13,622.98

each x

2
Image for Bodyshell MGB GT rubber bumper G-HD5 410351-436464

£16,347.58

£13,622.98

each x

2
Image for PANELLED R/BUMPER GT SHELL G-HD5 436465 on

£16,347.58

£13,622.98

each x

3
Image for FRT U/FRAME COMP C/B RHD MGB
FRT U/FRAME COMP C/B RHD MGB

Product Code: HZA4051

MGB & MGBGT - RHD & LHD - 1967-1974

£2,265.56

£1,887.97

each x

3
Image for FRT U/FRAM COMP R/B RHD MGB
FRT U/FRAM COMP R/B RHD MGB

Product Code: HZA5537

MGB & GT - RHD & LHD - 1977-1980
Chassis 437181 on

£3,022.25

£2,518.54

each x

4
Image for FRONT END MGB
FRONT END MGB

Product Code: BMH4002

MGB & MGBGT - RHD & LHD - 1962-1974

£1,352.39

£1,126.99

each x

4
Image for FRONT CHASSIS FRAME ASSY R/B B
FRONT CHASSIS FRAME ASSY R/B B

Product Code: BMH4003

MGB & MGBGT - RHD & LHD - 1976-1980 chassis number 410001 on

£1,352.39

£1,126.99

each x

5
Image for FRT CHASSIS FRAME MGB & GT 1962-1974
FRT CHASSIS FRAME MGB & GT 1962-1974

Product Code: BMH4000

MGB & MGBGT- RHD & LHD - 1962-1974

£907.20

£756.00

each x

5
Image for FRONT CHASSIS FRAME C/B MGB & GT 1974-1980
FRONT CHASSIS FRAME C/B MGB & GT 1974-1980

Product Code: BMH4001

MGB & MGBGT - RHD & LHD - 1974-1980

£777.53

£647.94

each x

6
Image for RH DASH SIDE SILL & A POST GT & V8 1965-1980
RH DASH SIDE SILL & A POST GT & V8 1965-1980

Product Code: HZA3996

MGBGT & V8 - RHD & LHD - 1965-1980

£319.06

£265.88

each x

6
Image for LH DASH SIDE SILL & A POST GT & V8 1965-1980
LH DASH SIDE SILL & A POST GT & V8 1965-1980

Product Code: HZA3997

MGBGT & V8 - RHD & LHD - 1965-1980

£319.06

£265.88

each x

6
Image for RH DASH SIDE SILL &  A POST ASSY 1962-1980
RH DASH SIDE SILL & A POST ASSY 1962-1980

Product Code: HZA5216

MGB & GT - RHD & LHD - 1962-1980

£322.92

£269.10

each x

6
Image for LH DASH SIDE SILL &  A POST ASSY 1962-1980
LH DASH SIDE SILL & A POST ASSY 1962-1980

Product Code: HZA5217

MGB & GT - RHD & LHD - 1962-1980

£310.94

£259.12

each x

7
Image for REAR END UNDER FRAME C/B MGB 1965-1974
REAR END UNDER FRAME C/B MGB 1965-1974

Product Code: HZA3971

MGB Roadster RHD & LHD - 1965-1974

£2,370.00

£1,975.00

each x

7
Image for REAR U/FRAME ASSEMBLY MGB GT 1967-1974
REAR U/FRAME ASSEMBLY MGB GT 1967-1974

Product Code: HZA3979

MGBGT - RHD & LHD - 1967-1974

£2,370.00

£1,975.00

each x

7
Image for REAR END U/FRAME R/B MGB 1974-1980
REAR END U/FRAME R/B MGB 1974-1980

Product Code: HZA5268

MGB Roadster - RHD & LHD - 1974-1980

£2,370.00

£1,975.00

each x

8
Image for BATTERY SHELF PANEL MGB & GT 1962-1974
BATTERY SHELF PANEL MGB & GT 1962-1974

Product Code: HZA115

MGB & MGBGT - RHD & LHD 1962-1974

£134.06

£111.72

each x

9
Image for REAR HEELBOARD ASSEMBLY MGB
REAR HEELBOARD ASSEMBLY MGB

Product Code: HZA488

All models

£178.21

£148.51

each x

10
Image for LH HEELBOARD EXTENSION MGB
LH HEELBOARD EXTENSION MGB

Product Code: HZA269

All models

£32.00

£26.67

each x

11
Image for RH HEELBOARD EXTENSION MGB
RH HEELBOARD EXTENSION MGB

Product Code: HZA268

All models

£32.00

£26.67

each x

12
Image for BONNET ALUMINIUM MGB & GT UP TO 1969
BONNET ALUMINIUM MGB & GT UP TO 1969

Product Code: HZA401

MGB & GT fitted as standard to 1969

£945.94

£788.28

each x

12
Image for BONNET STEEL MGB& GT 1969-1980
BONNET STEEL MGB& GT 1969-1980

Product Code: HZA4014

Roadster & GT fitted as standard 1969-1980

£542.75

£452.29

each x

13
Image for BOOT LID MGB ROADSTER
BOOT LID MGB ROADSTER

Product Code: HZA5511

All MGB Roadsters

£479.21

£399.34

each x

14
Image for Boot Lid Skin MGB Steel
Boot Lid Skin MGB Steel

Product Code: HZA117

All MGB Roadsters

£160.07

£133.39

each x

15
Image for FRONT WING RH BGT 1965-1968
FRONT WING RH BGT 1965-1968

Product Code: HZA2124

MGBGT 1965-1968

£666.41

£555.34

each x

15
Image for WING FRONT RH MGB CHR/BUMPER 1968-1974
WING FRONT RH MGB CHR/BUMPER 1968-1974

Product Code: HZA3842

MGB Roadsters 1968-1974

£633.70

£528.08

each x

15
Image for FRONT WING RH MGBGT CHR/BUMP 1968-1974
FRONT WING RH MGBGT CHR/BUMP 1968-1974

Product Code: HZA3846

MGBGT 1968-1974

£647.29

£539.41

each x

15
Image for WING FRONT RH MGB CHR/BUMPER 1962-1968
WING FRONT RH MGB CHR/BUMPER 1962-1968

Product Code: HZA409

Roadster 1962-1968

£633.70

£528.08

each x

15
Image for FRONT WING  RH MGB R/BUMP 1974-1980
FRONT WING RH MGB R/BUMP 1974-1980

Product Code: HZA4832

Roadsters 1974-1980 - Rubber bumper

£666.41

£555.34

each x

15
Image for FRONT WING RH MGBGT R/BUMPER 1974-1980
FRONT WING RH MGBGT R/BUMPER 1974-1980

Product Code: HZA4836

MGBGT 1974-1980 Rubber bumper

£666.41

£555.34

each x

16
Image for FRONT WING LH BGT 1965-1968
FRONT WING LH BGT 1965-1968

Product Code: HZA2125

MGBGT 1965-1968

£666.41

£555.34

each x

16
Image for WING FRONT LH MGB CHR/BUMPER 1968-1974
WING FRONT LH MGB CHR/BUMPER 1968-1974

Product Code: HZA3843

MGB Roadsters 1968-1974

£633.70

£528.08

each x

16
Image for FRONT WING LH MGBGT CHR/BUMPER 1968-1974
FRONT WING LH MGBGT CHR/BUMPER 1968-1974

Product Code: HZA3847

MGBGT 1968-1974

£647.29

£539.41

each x

16
Image for WING FRONT LH MGB CHR/BUMPER 1962-1968
WING FRONT LH MGB CHR/BUMPER 1962-1968

Product Code: HZA410

Roadster 1962-1968

£633.70

£528.08

each x

16
Image for FRONT WING LH MGB R/BUMPER 1974-1980
FRONT WING LH MGB R/BUMPER 1974-1980

Product Code: HZA4833

Roadsters 1974-1980 Rubber bumper

£666.41

£555.34

each x

16
Image for FRONT WING LH MGBGT R/BUMPER 1974-1980
FRONT WING LH MGBGT R/BUMPER 1974-1980

Product Code: HZA4837

MGBGT 1974-1980 Rubber bumper

£666.41

£555.34

each x

17
Image for FRONT VALANCE MGB 1972 TO 75
FRONT VALANCE MGB 1972 TO 75

Product Code: HZA592

1972-1974

£130.27

£108.56

each x

17
Image for FRONT VALANCE MGB 1962 TO 72
FRONT VALANCE MGB 1962 TO 72

Product Code: HZA592E

1962-1972

£109.04

£90.87

each x

17
Image for MGB front valance up to  1972 (no holes)
MGB front valance up to 1972 (no holes)

Product Code: MB10

Up to 1972

£97.21

£81.01

each x

17
Image for FRT VALANCE WITH AIR HOLES MGB 72-74
FRT VALANCE WITH AIR HOLES MGB 72-74

Product Code: MB11

1972-1974

£97.21

£81.01

each x

17
Image for FRONT VALANCE R/B MGB 1974 ON
FRONT VALANCE R/B MGB 1974 ON

Product Code: MB12

1974-1980

£100.72

£83.93

each x

18
Image for DOOR RH MGB ROADSTER
DOOR RH MGB ROADSTER

Product Code: HZA5508

For pre 1967 Roadster cars please enquire

£538.48

£448.73

each x

18
Image for DOOR LH MGB ROADSTER
DOOR LH MGB ROADSTER

Product Code: HZA5509

For pre 1967 Roadster cars please enquire

£538.48

£448.73

each x

18
Image for DOOR RH MGB GT
DOOR RH MGB GT

Product Code: HZA5514

£542.82

£452.35

each x

18
Image for DOOR LH MGB GT
DOOR LH MGB GT

Product Code: HZA5515

£542.82

£452.35

each x

19
Image for WING REAR RH RST MGB CHR/BUMP
WING REAR RH RST MGB CHR/BUMP

Product Code: HZA4224

All chrome bumper Roadster & GT variants were finished by lead-loading the seam between the rear wings and rear valance panel. The seam on the production wings and valances centred at the fuel filler neck aperture. With the introduction of rubber bumper models in 1974 lead-loading was discontinued; the rear valance panel was made wider and the rear wings narrower. Because of modification to the tooling to produce rubber bumper panels, the same is true with Heritage chrome bumper rear wing and valances and as such should be replaced in sets for original cars that still retain their lead-loaded finish. Otherwise, you will have to fill a 2 inch gap between the valance and the wing. From March 1967 all models were fitted with reverse lamps in the rear wing, earlier cars will need to have these apertures blanked off to keep the car as original. Also rear wing assemblies will fit cars with the early type door striker if the \'B\' post is modified.

£756.94

£630.78

each x

19
Image for REAR WING RH R/BUMPER RST
REAR WING RH R/BUMPER RST

Product Code: HZA5000

MGB Roadster Rubber bumper

£756.94

£630.78

each x

20
Image for WING REAR LH RST MGB CHR/BUMP
WING REAR LH RST MGB CHR/BUMP

Product Code: HZA4225

All chrome bumper Roadster & GT variants were finished by lead-loading the seam between the rear wings and rear valance panel. The seam on the production wings and valances centred at the fuel filler neck aperture. With the introduction of rubber bumper models in 1974 lead-loading was discontinued; the rear valance panel was made wider and the rear wings narrower. Because of modification to the tooling to produce rubber bumper panels, the same is true with Heritage chrome bumper rear wing and valances and as such should be replaced in sets for original cars that still retain their lead-loaded finish. Otherwise, you will have to fill a 2 inch gap between the valance and the wing. From March 1967 all models were fitted with reverse lamps in the rear wing, earlier cars will need to have these apertures blanked off to keep the car as original. Also rear wing assemblies will fit cars with the early type door striker if the \'B\' post is modified.

£754.63

£628.86

each x

20
Image for REAR WING LH R/BUMPER RST
REAR WING LH R/BUMPER RST

Product Code: HZA5001

MGB Roadster Rubber bumper

£599.62

£499.68

each x

21
Image for SHROUD ASSEMBLY R/B MGB 1974-1980
SHROUD ASSEMBLY R/B MGB 1974-1980

Product Code: HZA4932

MGB Roadster 1974-1980

£197.40

£164.50

each x

21
Image for SHROUD ASSEMBLY MGB 1962-1974
SHROUD ASSEMBLY MGB 1962-1974

Product Code: HZA672

RHD & LHD Roadster 162-1974 steel dash

£197.40

£164.50

each x

22
Image for B POST RH MGB & GT1965-1980 - RV8 (Not USA spec)
B POST RH MGB & GT1965-1980 - RV8 (Not USA spec)

Product Code: HZA582

MGB Roadster & GT 1965-1980

£89.24

£74.37

each x

23
Image for B POST LH MGB & GT- RV8 1965-1980(Not USA spec)
B POST LH MGB & GT- RV8 1965-1980(Not USA spec)

Product Code: HZA583

MGB Roadster & GT 1965-1980

£89.24

£74.37

each x

24
Image for REAR DECKING ROADSTER MGB
REAR DECKING ROADSTER MGB

Product Code: HZA4212

All models

£79.09

£65.91

each x

25
Image for REAR PANEL 1962-74 MGB RDST
REAR PANEL 1962-74 MGB RDST

Product Code: HZA4217

All chrome bumper Roadster & GT variants were finished by lead-loading the seam between the rear wings and rear valance panel. The seam on the production wings and valances centred at the fuel filler neck aperture. With the introduction of rubber bumper models in 1974 lead-loading was discontinued; the rear valance panel was made wider and the rear wings narrower. Because of modification to the tooling to produce rubber bumper panels, the same is true with Heritage chrome bumper rear wing and valances and as such should be replaced in sets for original cars that still retain their lead-loaded finish. Otherwise, you will have to fill a 2 inch gap between the valance and the wing. From March 1967 all models were fitted with reverse lamps in the rear wing, earlier cars will need to have these apertures blanked off to keep the car as original. Also rear wing assemblies will fit cars with the early type door striker if the \'B\' post is modified.

£259.97

£216.64

each x

25
Image for REAR VALANCE ASSY ROADSTER 1974-1980
REAR VALANCE ASSY ROADSTER 1974-1980

Product Code: HZA4850

MGB Roadster 1974-1980 Rubber bumper

£254.92

£212.43

each x

26
Image for BOOT STRIKER REIN ASSY MGB GT
BOOT STRIKER REIN ASSY MGB GT

Product Code: HZA470

All models

£16.79

£13.99

each x

27
Image for WING BEADING (PER LENGTH 5.5FT)
WING BEADING (PER LENGTH 5.5FT)

Product Code: MB38

£25.32

£21.10

each x

28
Image for FITTING KIT FRONT WING MGB
FITTING KIT FRONT WING MGB

Product Code: ARBK910

All Models

£11.94

£9.95

KIT x

29
Image for FITTING KIT FRONT VALANCE MGB
FITTING KIT FRONT VALANCE MGB

Product Code: ARBK911

All Models

£3.06

£2.55

KIT x

30
Image for FITTING KIT FRONT VALANCES/STEEL MGB
FITTING KIT FRONT VALANCES/STEEL MGB

Product Code: ARBK911SS

All Models

£4.87

£4.06

KIT x

Products not on diagram

Image for HEADLAMP SUPPORT RING A B MID
HEADLAMP SUPPORT RING A B MID

Product Code: CZA81

£19.37

£16.14

each x

Image for STRIPING KIT MGB
STRIPING KIT MGB

Product Code: GZF2024

£12.00

£10.00

each x

Image for FLOOR PAN DRAIN O.E. MGB
FLOOR PAN DRAIN O.E. MGB

Product Code: HZA101

£3.54

£2.95

each x

Image for SUPPORT LOWER B/HEAD LH MGB
SUPPORT LOWER B/HEAD LH MGB

Product Code: HZA105

£30.62

£25.52

each x

Image for SUPPORT LOWER B/HEAD RH MGB
SUPPORT LOWER B/HEAD RH MGB

Product Code: HZA106

£30.62

£25.52

each x

Image for A POST TUBE STIF ASSY C/B MGB
A POST TUBE STIF ASSY C/B MGB

Product Code: HZA1446

£51.62

£43.02

each x

Image for SHROUD ASSEMBLY LHD C/B MGB
SHROUD ASSEMBLY LHD C/B MGB

Product Code: HZA3820

£197.40

£164.50

each x

Image for BONNET ALUMINUM MGB USED
BONNET ALUMINUM MGB USED

Product Code: HZA401U

£240.00

£200.00

each x

Image for FRONT WING -NLA
FRONT WING -NLA

Product Code: HZA411

Image for FRONT WING - NLA
FRONT WING - NLA

Product Code: HZA412

Image for FRONT U/FRAME ASSY LHD MGB
FRONT U/FRAME ASSY LHD MGB

Product Code: HZA4175

£2,265.56

£1,887.97

each x

Image for USE HZA4245
USE HZA4245

Product Code: HZA4234

Has been superseded by
Image for BODY SHELL PANELLED MGB C/B RHD GHN-4 138401-360300

£14,494.32

£12,078.60

each x

Has been superseded by
Image for BODY SHELL PANELLED MGB C/B RHD GHN-4 138401-360300

£14,494.32

£12,078.60

each x

Image for PANEL B POST RH - NLA
PANEL B POST RH - NLA

Product Code: HZA444

Image for PANEL B POST LH - NLA
PANEL B POST LH - NLA

Product Code: HZA445

Image for Boot Lid Plate Alloy 3 bolt 6mm holes
Boot Lid Plate Alloy 3 bolt 6mm holes

Product Code: HZA5511ALYPLATE

£7.20

£6.00

each x

Image for UPPER BAULKHEAD ASSY MGB
UPPER BAULKHEAD ASSY MGB

Product Code: HZA605

£667.02

£555.85

each x

Image for SILL  D/SIDE & A POST RH C/B
SILL D/SIDE & A POST RH C/B

Product Code: HZA688

£334.48

£278.73

each x

Image for SILL  D/SIDE & A POST LH C/B
SILL D/SIDE & A POST LH C/B

Product Code: HZA689

£334.48

£278.73

each x

Image for SILL CLOSING PANEL RH MGB
SILL CLOSING PANEL RH MGB

Product Code: HZA690

Has been superseded by
Image for INNER SILL MGB RH
INNER SILL MGB RH

Product Code: MB23R

£45.66

£38.05

each x

Image for SILL CLOSING PANEL RH MGB
SILL CLOSING PANEL RH MGB

Product Code: HZA691

Image for Nut front floor pan MGB
Nut front floor pan MGB

Product Code: HZA111

£1.01

£0.84

each x

Image for 1 inch plastic plug black
1 inch plastic plug black

Product Code: CFP1000B

£0.90

£0.75

each x

Image for 5/16 inch UNF Weld Nut MGB MGC Midget

£1.01

£0.84

each x

Image for 10-32 UNF weld nut MGB MGC Midget
10-32 UNF weld nut MGB MGC Midget

Product Code: HZA114

£1.01

£0.84

each x

Image for FITTING KIT FRONT WING MGB - Stainless Steel

£15.59

£12.99

KIT x

Basket

You have 0 Items - £0.00

View Basket

Quick Search
