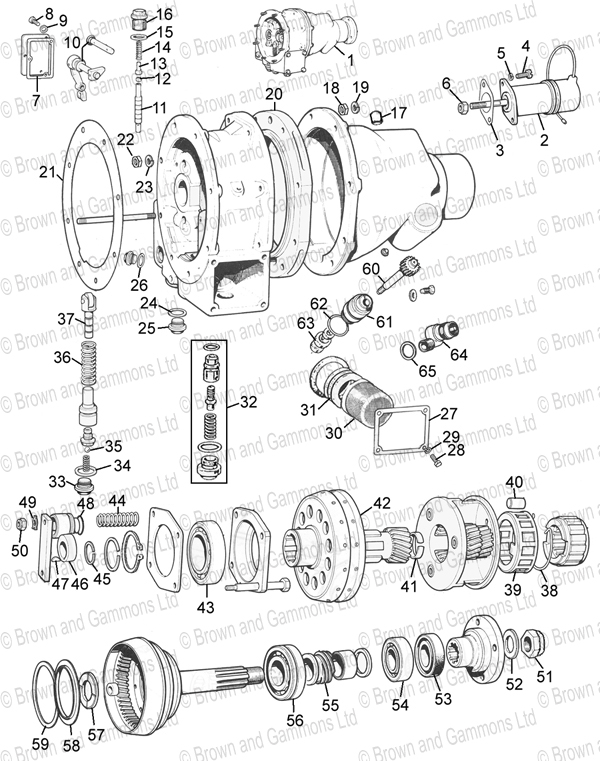

Overdrive 3 syncro gearbox

Image for Overdrive 3 syncro gearbox

Item

Description

Action

1
Image for D TYPE OVERDRIVE COMP
D TYPE OVERDRIVE COMP

Product Code: 22H210CE

1
Image for MGB 3 syc D type Overdrive unit (62-67) Exchange

£594.00

£495.00

each x

2
Image for OVERDRIVE SOLENOID MGB 3 SYNC
OVERDRIVE SOLENOID MGB 3 SYNC

Product Code: 10002

£51.00

£42.50

each x

3
Image for GASKET D TYPE OD SOLENOID
GASKET D TYPE OD SOLENOID

Product Code: 7H8196

£1.38

£1.15

each x

4
Image for HEX SCREW 3/16 INCH UNF x 0.5 INCH
HEX SCREW 3/16 INCH UNF x 0.5 INCH

Product Code: 53K126

£0.36

£0.30

each x

5
Image for WASHER STAR 3/16 INT
WASHER STAR 3/16 INT

Product Code: WF702101

£0.12

£0.10

each x

6
Image for NYLOC NUT THIN TYPE
NYLOC NUT THIN TYPE

Product Code: GHF271

£0.26

£0.22

each x

7
Image for GASKET 3 SYNCRO OVERDRIVE MGB
GASKET 3 SYNCRO OVERDRIVE MGB

Product Code: 513204

£0.72

£0.60

each x

8
Image for HEX SCREW 3/16 INCH UNF x 0.5 INCH
HEX SCREW 3/16 INCH UNF x 0.5 INCH

Product Code: 53K126

£0.36

£0.30

each x

9
Image for WASHER STAR 3/16 INT
WASHER STAR 3/16 INT

Product Code: WF702101

£0.12

£0.10

each x

10
Image for 'O' RING OVERDRIVE
'O' RING OVERDRIVE

Product Code: 500594

£84.00

£70.00

each x

11
Image for VALVE D-TYPE OVERDRIVE MGB
VALVE D-TYPE OVERDRIVE MGB

Product Code: 17H8030

12
Image for BALL BEARING MGB MIDGET MGA
BALL BEARING MGB MIDGET MGA

Product Code: BLS109

£0.92

£0.77

each x

13
Image for PLUNGER
PLUNGER

Product Code: 500591

£12.30

£10.25

each x

14
Image for SPRING - PLUNGER
SPRING - PLUNGER

Product Code: 7972

£2.70

£2.25

each x

15
Image for COPPER WASHER BRAKE BANJO
COPPER WASHER BRAKE BANJO

Product Code: 3H693

£0.95

£0.79

each x

16
Image for PLUG OVERDRIVE
PLUG OVERDRIVE

Product Code: 506117

£15.30

£12.75

each x

17
Image for BREATHER - OVERDRIVE
BREATHER - OVERDRIVE

Product Code: 502560

£5.95

£4.96

each x

18
Image for NUT 1/4 INCH UNF   (PACK OF 10)
NUT 1/4 INCH UNF (PACK OF 10)

Product Code: GHF200

Alt GHF200 Stainless steel

£0.24

£0.20

Pack of 10 x

20
Image for BRAKE RING MGB O/DRIVE UNIT
BRAKE RING MGB O/DRIVE UNIT

Product Code: 7H8310

21
Image for GASKET O/DRIVE MGB
GASKET O/DRIVE MGB

Product Code: 37H1901

£2.10

£1.75

each x

21
Image for USE 37H1901
USE 37H1901

Product Code: 22H166

Has been superseded by
Image for GASKET O/DRIVE MGB
GASKET O/DRIVE MGB

Product Code: 37H1901

£2.10

£1.75

each x

22
Image for NUT - HIGH TENSILE
NUT - HIGH TENSILE

Product Code: FNZ504

£1.18

£0.98

each x

23
Image for SPRING WASHER 1/4 INCH (PACK 10)
SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

£0.10

£0.08

Pack of 10 x

23
Image for S/STEEL SPRING WASHER 1/4 INCH (RECT)
S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

£0.12

£0.10

each x

24
Image for WASHER DRAIN PLUG - NLA
WASHER DRAIN PLUG - NLA

Product Code: 506118A

25
Image for D TYPE DRAIN PLUG
D TYPE DRAIN PLUG

Product Code: 506114

£18.59

£15.49

each x

26
Image for FIBRE WASHER FUEL PUMP/CARB
FIBRE WASHER FUEL PUMP/CARB

Product Code: AUC2141

£0.50

£0.42

each x

27
Image for O/D GASKET G/BOX 3 SYNCRO MGB
O/D GASKET G/BOX 3 SYNCRO MGB

Product Code: 506098

£1.34

£1.12

each x

28
Image for SET SCREW 1/4 UNF X 3/4 STAINLESS STEEL

£0.36

£0.30

each x

28
Image for USE SH604061
USE SH604061

Product Code: GHF117

Has been superseded by
Image for SCREW 1/4 INCH UNF x 0.75 INCH  (PACK 10)
SCREW 1/4 INCH UNF x 0.75 INCH (PACK 10)

Product Code: SH604061

Screw x 4

£0.30

£0.25

Pack of 10 x

29
Image for USE WF600041
USE WF600041

Product Code: GHF321

Has been superseded by
Image for Shake Proof Washer Int  1/4 INCH (Pack 10)

£0.12

£0.10

Pack of 10 x

30
Image for OVERDRIVE FILTER
OVERDRIVE FILTER

Product Code: 7H8197

31
Image for MAGNET SET
MAGNET SET

Product Code: 513205

£11.39

£9.49

each x

32
Image for RELIEF VALVE KIT - OVERDRIVE
RELIEF VALVE KIT - OVERDRIVE

Product Code: 7H8191

£31.84

£26.53

each x

33
Image for PLUG - NON RETURN VALVE
PLUG - NON RETURN VALVE

Product Code: 513206

£13.92

£11.60

each x

34
Image for WASHER DRAIN PLUG - NLA
WASHER DRAIN PLUG - NLA

Product Code: 506118A

35
Image for BALL BEARING
BALL BEARING

Product Code: BLS107

£0.49

£0.41

each x

36
Image for SPRING - PLUNGER OVERDRIVE
SPRING - PLUNGER OVERDRIVE

Product Code: 500633

£7.19

£5.99

each x

37
Image for PLUNGER MGB
PLUNGER MGB

Product Code: 513196

38
Image for LOCK RING
LOCK RING

Product Code: 513208

£0.89

£0.74

each x

40
Image for ROLLER SET (12 PIECES)
ROLLER SET (12 PIECES)

Product Code: 506063A

£7.55

£6.29

each x

41
Image for CLIP MAIN SHAFT
CLIP MAIN SHAFT

Product Code: 22H193

£11.10

£9.25

each x

43
Image for BEARING MGB O/DRIVE
BEARING MGB O/DRIVE

Product Code: 7H8301

£21.94

£18.28

each x

45
Image for Overdrive cam retaining clip
Overdrive cam retaining clip

Product Code: 22H228

£4.74

£3.95

each x

46
Image for CAM D TYPE OVERDRIVE
CAM D TYPE OVERDRIVE

Product Code: 22H190

£31.20

£26.00

each x

47
Image for WOODRUFF KEY
WOODRUFF KEY

Product Code: WKN304

£1.02

£0.85

each x

48
Image for 'O' RING OPERATING PISTON
'O' RING OPERATING PISTON

Product Code: TRS1114

£0.48

£0.40

each x

49
Image for LOCK TAB -NLA
LOCK TAB -NLA

Product Code: 7H5863

50
Image for NUT 1/4 INCH UNF   (PACK OF 10)
NUT 1/4 INCH UNF (PACK OF 10)

Product Code: GHF200

Alt GHF200 Stainless steel

£0.24

£0.20

Pack of 10 x

50
Image for STAINLESS STEEL 1/4 UNF NUT
STAINLESS STEEL 1/4 UNF NUT

Product Code: GHF200SS

£0.18

£0.15

each x

51
Image for NUT PINION MGB
NUT PINION MGB

Product Code: BTB753

£4.86

£4.05

each x

52
Image for WASHER
WASHER

Product Code: WP24

£0.46

£0.38

each x

53
Image for MGB Overdrive rear oil seal 3 synchro

£5.10

£4.25

each x

54
Image for OVERDRIVE ANNULUS BEARING REAR
OVERDRIVE ANNULUS BEARING REAR

Product Code: 2F1966

£10.67

£8.89

each x

55
Image for GEAR SPEEPOMETER O/D G/BOX
GEAR SPEEPOMETER O/D G/BOX

Product Code: 7H8294

£22.42

£18.68

each x

56
Image for BEARING ANNULUS  FRONT MGB O/DRIVE
BEARING ANNULUS FRONT MGB O/DRIVE

Product Code: 7H8300

£9.80

£8.17

each x

57
Image for THRUST WASHER G/BO/D 4SYNCRO B
THRUST WASHER G/BO/D 4SYNCRO B

Product Code: 500613A

£12.35

£10.29

each x

58
Image for OIL THROWER
OIL THROWER

Product Code: 10857

£6.54

£5.45

each x

59
Image for SPRING RING
SPRING RING

Product Code: NKC77A

£5.15

£4.29

each x

60
Image for SPEEDO PINION D TYPE
SPEEDO PINION D TYPE

Product Code: 17H8021

£27.24

£22.70

each x

61
Image for SPEEDO HOUSING D TYPE O/DRIVE
SPEEDO HOUSING D TYPE O/DRIVE

Product Code: 17H8012

£47.94

£39.95

each x

62
Image for 'O' RING D TYPE OVERDRIVE
'O' RING D TYPE OVERDRIVE

Product Code: 506115

£1.44

£1.20

each x

63
Image for OIL SEAL SPEEDO DRIVE MGB MGA
OIL SEAL SPEEDO DRIVE MGB MGA

Product Code: NKC105A

£3.83

£3.19

each x

64
Image for SPEEDO ANGLE DRIVE MGB MGC
SPEEDO ANGLE DRIVE MGB MGC

Product Code: 120694

£71.28

£59.40

each x

65
Image for COPPER WASHER BRAKE BANJO
COPPER WASHER BRAKE BANJO

Product Code: 3H550

£0.66

£0.55

each x

Products not on diagram

Image for VALVE ASSY
VALVE ASSY

Product Code: 37H2693

£19.20

£16.00

each x

Image for BRAKE MAS/CYLINDER SPRING MGB
BRAKE MAS/CYLINDER SPRING MGB

Product Code: 542483

£1.46

£1.22

each x

Image for BEARING CIRCLIP MGB
BEARING CIRCLIP MGB

Product Code: ADU7194

Image for Rear remote bracket 3 Sync overdrive MGB

£23.94

£19.95

each x
