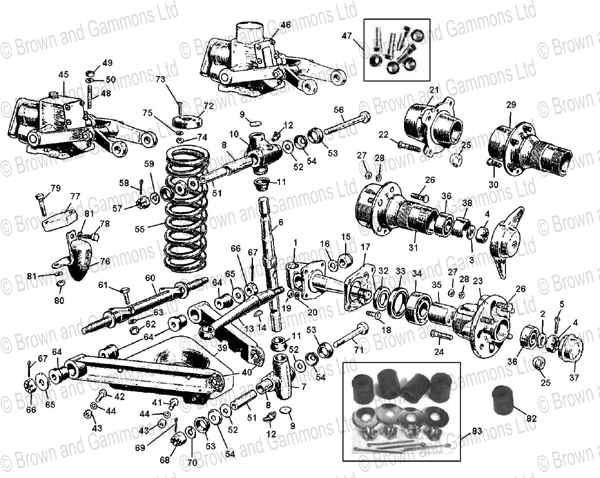

Front suspension

Front suspension
Notes: There were a few minor changes in the front suspension components that should be noted when identifying the actual parts you require.

A: At 1500 chassis no. 54246 the stub axle & steering arm were changed, the steering arm taper increased in size and the fising nut went from 1/2" UNF to 5/8inch UNF. The stub and steering arm assemblies were interchangeable as a unit.
B: At 1500 chassis no.66573 the spring pan was changed to the type with a hole for the anti-roll bar link, the front wishbone arms were not changed
C: At 1500 chassis no. 15151 the coil spring was change from 409 lb/in rate to a stiffer 480 lbs/in rate. The ride height remained the same.
D: At 1600 chassis no. 69504 (disc wheels) & 70275 (wire wheels) the method of attaching the brake disc to the front hub changed from studs splined into the hub + nuts to hex head bolts + nuts. This meant a change in the hubs to accept the bolts
E: At 1622 chassis no 102589 metal dust cover plates were fitted to the front brake discs.

Item

Description

Action

RETAINING WASHER 3/4 INCH ID

Product Code: ATB4069

Early cars

£4.80

£4.00 ex. VAT

each x

WASHER FRONT WHEEL BRG.MGB MGC MGA

Product Code: 1A4742

Late cars

£1.19

£0.99 ex. VAT

each x

NUT LH 3/4 INCH F/SUS LATE TD/F A

Product Code: FNN2412

£8.34

£6.95 ex. VAT

each x

NUT RH 3/4 INCH F/SUS LATE TDTF A

Product Code: FNN412

£4.50

£3.75 ex. VAT

each x

NUT LH 3/4 INCH F/SUS LATE TD/F A

Product Code: FNN2412

£8.34

£6.95 ex. VAT

each x

NUT RH 3/4 INCH F/SUS LATE TDTF A

Product Code: FNN412

£4.50

£3.75 ex. VAT

each x

SPLIT PIN 9/64 INCH x 2.1/4 INCH (PACK 10)

Product Code: GHF505

Sold in pack of 10

£0.25

£0.21 ex. VAT

Pack of 10 x

SWIVEL PIN RH TD TF MGA

Product Code: ATB4218

£87.54

£72.95 ex. VAT

each x

SWIVEL PIN LH TD TF MGA

Product Code: ATB4219

£87.54

£72.95 ex. VAT

each x

MGA TD TF RH Lower Trunnion

Product Code: ATB4212

£113.94

£94.95 ex. VAT

each x

MGA TD TF LH Lower Trunnion

Product Code: ATB4213

£113.94

£94.95 ex. VAT

each x

BUSH KING PIN LOWER MGB TYP A

Product Code: BTB768

£8.88

£7.40 ex. VAT

each x

PLUG TRUNNION/PIN MGA TF TD

Product Code: ACA4010

£1.08

£0.90 ex. VAT

each x

MGA TD TF RH Top Trunnion

Product Code: ATB4208

£113.94

£94.95 ex. VAT

each x

MGA TD TF LH Top Trunnion

Product Code: ATB4209

£113.94

£94.95 ex. VAT

each x

SEAL TRUNNION/PIN MGA TF TD

Product Code: ACG4030

£4.20

£3.50 ex. VAT

each x

SEAL TRUNNION/PIN MGA TF TD

Product Code: ACG4030

£4.20

£3.50 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

Sold in pack of 10

£0.07

£0.06 ex. VAT

Pack of 10 x

90 DEG GREASE NIPPLE

Product Code: UHN405

£2.48

£2.07 ex. VAT

each x

USE BTB103U

Product Code: BTB103

1600 & 1622 disc brake cars only

Has been superseded by

5/8 INCH LH STEERING ARM 1600/1622

Product Code: BTB103U

£118.80

£99.00 ex. VAT

each x

Woodruff key steering arm to stub axle

Product Code: WKN506

£1.14

£0.95 ex. VAT

each x

Aero lock 1/2 inch UNF nut

Product Code: LNZ108

1500 up to chasis no 54246

£2.22

£1.85 ex. VAT

each x

NUT STEER ARM>KNUCKLE 5/8 INCH UNF

Product Code: LNZ510

1500 from chassis no 54247 on

£2.10

£1.75 ex. VAT

each x

PLAIN WASHER 1/2 INCH

Product Code: GHF304

1500 up to chasis no 54246

£0.17

£0.14 ex. VAT

each x

WASHER PLAIN 5/8 INCH x1.1/8 INCH OD

Product Code: PWZ110

1500 from chassis no 54247 on

£0.66

£0.55 ex. VAT

each x

USE BTB124/5X

Product Code: BTB124

CALIPER MOUNTING BRACKETS MGA

Product Code: BTB124/5X

Has been superseded by

MGA Caliper mounting brackets (MGB Calipers)

Product Code: BTB124-5X

£160.74

£133.95 ex. VAT

each x

USE BTB124/5X

Product Code: BTB125

BOLT 3/8 INCH UNF X 1.375 INCH

Product Code: BH606111

£0.91

£0.76 ex. VAT

each x

BOLT - BRAKE DISC TO HUB MGB A

Product Code: BTB198

£1.14

£0.95 ex. VAT

each x

NUT 3/8 INCH UNF HIGH TENSILE

Product Code: FNZ506

£1.04

£0.87 ex. VAT

each x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

FRONT WHEEL STUD MGA

Product Code: 1G4359

1500 drum brakes only

£8.10

£6.75 ex. VAT

each x

WHEEL NUT 7/16 INCH UNF MGA

Product Code: 88G276

All models

£3.00

£2.50 ex. VAT

each x

WHEEL NUT 7/16 INCH UNF MGA

Product Code: 88G276

All models

£3.00

£2.50 ex. VAT

each x

BOLT - BRAKE DISC TO HUB MGB A

Product Code: BTB198

£1.14

£0.95 ex. VAT

each x

BOLT - BRAKE DISC TO HUB MGB A

Product Code: BTB198

SEE NOTE D

£1.14

£0.95 ex. VAT

each x

NUT 3/8 INCH UNF HIGH TENSILE

Product Code: FNZ506

£1.04

£0.87 ex. VAT

each x

NUT 3/8 INCH UNF HIGH TENSILE

Product Code: FNZ506

£1.04

£0.87 ex. VAT

each x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

TD TF MGA 1500 RH Front hub drum brakes

Product Code: ATB4180

1500 drum brakes

£113.40

£94.50 ex. VAT

each x

TD TF MGA1500 Front hub LH drum brakes

Product Code: ATB4181

1500 drum brakes

£113.40

£94.50 ex. VAT

each x

STUD BRAKE DRUM TF MGA

Product Code: ATB4124

£3.72

£3.10 ex. VAT

each x

HUB R/H FRONT MGA (BRAKE DISC)

Product Code: BTB142

1600/1622 disc brakes

£100.80

£84.00 ex. VAT

each x

HUB L/H FRONT MGA (BRAKE DISC)

Product Code: BTB143

1600/1622 disc brakes

£100.80

£84.00 ex. VAT

each x

SPACER STUB AXLE MGA TD/TF

Product Code: ACF4001

£13.08

£10.90 ex. VAT

each x

OIL SEAL FRONT HUB TD TF MGA

Product Code: ACF4004

£3.30

£2.75 ex. VAT

each x

HUB BRG INNER FRT TD/TF MGA

Product Code: 6306

£12.78

£10.65 ex. VAT

each x

SPACER FRT HUB BRG MGA TD/TF

Product Code: ACF4003

£15.00

£12.50 ex. VAT

each x

TD-TF Y MGA Front wheel bearing small

Product Code: 6304

£10.74

£8.95 ex. VAT

each x

TD-TF Y MGA Front wheel bearing small

Product Code: 6304

£10.74

£8.95 ex. VAT

each x

GREASE CAP FRONT HUB

Product Code: ATB4098

£8.99

£7.49 ex. VAT

each x

GREASE RETAINER W/WHEELS ONLY

Product Code: ATB4131

£15.20

£12.67 ex. VAT

each x

USE AHH5925

Product Code: 126905

Up to 1500 chassis no 66573

Has been superseded by

FRT SPRING PAN MGB MGA TTYPE

Product Code: AHH5925

£27.42

£22.85 ex. VAT

each x

FRT SPRING PAN MGB MGA TTYPE

Product Code: AHH5925

From 1500 chassis no 66574

£27.42

£22.85 ex. VAT

each x

WISHBONE ARM MGB MGA TD TF

Product Code: AAA1326

£10.41

£8.67 ex. VAT

each x

SET SCREW 5/16 INCH UNF X 0.875 INCH

Product Code: SH605071

£0.20

£0.17 ex. VAT

each x

SET SCREW 5/16 INCH UNF X 1.0 INCH

Product Code: GHF103

£0.30

£0.25 ex. VAT

each x

NUT 5/16 inch UNF (PACK 10)

Product Code: GHF201

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

NUT 5/16 inch UNF (PACK 10)

Product Code: GHF201

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

SPRING WASHER 5/16 inch

Product Code: GHF332

Sold in pack of 10

£0.07

£0.06 ex. VAT

Pack of 10 x

MGA Front damper reconditioned

Product Code: AHH4004

£83.94

£69.95 ex. VAT

each x

SHOCK ABS. FRONT COMP. MGA

Product Code: AHH4004C

New body revalved to competition settings. Fitted with the arms from your unit

£173.48

£144.57 ex. VAT

each x

MGA New front damper(MGB style body)

Product Code: AHH4004B

£214.20

£178.50 ex. VAT

each x

BOLT KIT FOR REPRO MGA F/SHOCK

Product Code: AHH4004BK

One kit per shocker

£7.10

£5.92 ex. VAT

KIT x

STUD MGA FRONT SHOCK MOUNTING

Product Code: AHH5070

£2.80

£2.33 ex. VAT

each x

NUT PLAIN 3/8 INCH UNF

Product Code: GHF202

£0.17

£0.14 ex. VAT

each x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

DISTANCE TUBE KG/PIN/TRUNNION

Product Code: BHH1773

£5.16

£4.30 ex. VAT

each x

DISTANCE TUBE KG/PIN/TRUNNION

Product Code: BHH1773

£5.16

£4.30 ex. VAT

each x

THRUST WASHER MGB MGA TD TF

Product Code: AAA1390

£1.14

£0.95 ex. VAT

each x

THRUST WASHER MGB MGA TD TF

Product Code: AAA1390

£1.14

£0.95 ex. VAT

each x

THRUST WASHER MGB MGA TD TF

Product Code: AAA1390

£1.14

£0.95 ex. VAT

each x

SEAL FRT TRUNNION MGB A TD/TF

Product Code: AAA1323

Has been superseded by

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

SEAL FRT TRUNNION MGB A TD/TF

Product Code: AAA1323

Has been superseded by

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

SEAL FRT TRUNNION MGB A TD/TF

Product Code: AAA1323

Has been superseded by

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

SEAL SUPPORT MGB MGA TD TF

Product Code: AAA1324

£1.08

£0.90 ex. VAT

each x

SEAL SUPPORT MGB MGA TD TF

Product Code: AAA1324

£1.08

£0.90 ex. VAT

each x

SEAL SUPPORT MGB MGA TD TF

Product Code: AAA1324

£1.08

£0.90 ex. VAT

each x

TD-TF MGA Front coil spring (each)

Product Code: 139105

Up to 1500 chassis no 15151

£39.00

£32.50 ex. VAT

each x

MGB GT 65-74 MGA Front coil spring

Product Code: AHH5789

From chassis no 15152

£35.88

£29.90 ex. VAT

each x

COIL SPRING 480 LBS MGB MGA TTYPE one spring)

Product Code: AHT21

Alternatives

£41.40

£34.50 ex. VAT

each x

COIL SPRING 600 LBS x 7.75 INCH COMP MGA MGB

Product Code: AHT22

Alternatives

£47.94

£39.95 ex. VAT

each x

COIL SPRING 600 LBS x 8 INCH MGA MGB

Product Code: AHT23

Alternatives

£41.94

£34.95 ex. VAT

each x

MGA TD TF Top trunnion bolt

Product Code: AHH4002K

£11.04

£9.20 ex. VAT

each x

FULL NUT SLOTTED 1/2 INCH UNF

Product Code: ND608041

£1.14

£0.95 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

Sold in pack of 10

£0.22

£0.18 ex. VAT

Pack of 10 x

SPRING WASHER 1/2 INCH

Product Code: GHF335

£0.24

£0.20 ex. VAT

each x

MGB MGA TD-TF Inner wishbone pivot (UNF threads)

Product Code: AHH4003

£35.10

£29.25 ex. VAT

each x

USE BTB198

Product Code: ACB5255

Has been superseded by

BOLT - BRAKE DISC TO HUB MGB A

Product Code: BTB198

£1.14

£0.95 ex. VAT

each x

Nut 3/8 metal locking type H/T

Product Code: LNZ106

£1.43

£1.19 ex. VAT

each x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

BUSH INNER WISHBONE MGB A T

Product Code: AHH7933

£0.78

£0.65 ex. VAT

each x

BUSH INNER WISHBONE MGB A T

Product Code: AHH7933

£0.78

£0.65 ex. VAT

each x

BUSH INNER WISHBONE MGB A T

Product Code: AHH7933

£0.78

£0.65 ex. VAT

each x

INNER PIVOT WASHER B A TD TF

Product Code: AAA1330

£1.34

£1.12 ex. VAT

each x

INNER PIVOT WASHER B A TD TF

Product Code: AAA1330

£1.34

£1.12 ex. VAT

each x

FULL NUT SLOTTED 1/2 INCH UNF

Product Code: ND608041

£1.14

£0.95 ex. VAT

each x

HALF NUT SLOTTED 1/2 INCH UNF

Product Code: NL608041

£1.06

£0.88 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

Sold in pack of 10

£0.22

£0.18 ex. VAT

Pack of 10 x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

Sold in pack of 10

£0.22

£0.18 ex. VAT

Pack of 10 x

FULL NUT SLOTTED 1/2 INCH UNF

Product Code: ND608041

£1.14

£0.95 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

Sold in pack of 10

£0.22

£0.18 ex. VAT

Pack of 10 x

SPRING WASHER 1/2 INCH

Product Code: GHF335

£0.24

£0.20 ex. VAT

each x

MGB-A-TD-TF Lower suspension bolt

Product Code: AHH4001K

£5.04

£4.20 ex. VAT

each x

FRONT SPRING SPIGOT B A T

Product Code: AHH5897

£17.00

£14.17 ex. VAT

each x

USE CMZ420SS

Product Code: CMZ420

Has been superseded by

Stainless Steel screw 1/4 INCH UNF X 1 1/4 INCH CSK POZ

Product Code: CMZ420SS

£0.67

£0.56 ex. VAT

each x

NUT 1/4 INCH UNF (PACK OF 10)

Product Code: GHF200

Sold in pack of 10

£0.24

£0.20 ex. VAT

Pack of 10 x

SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

Sold in pack of 10

£0.10

£0.08 ex. VAT

Pack of 10 x

BUMP STOP FRONT MGA TD TF

Product Code: AAA5023

£10.68

£8.90 ex. VAT

each x

BUMP STOP SPACER

Product Code: AAA5024

£4.44

£3.70 ex. VAT

each x

SET SCREW 5/16 INCH UNF x 0.5 INCH

Product Code: SH605041

£0.42

£0.35 ex. VAT

each x

BOLT 5/16 INCH UNF X 1.5 INCH

Product Code: GHF104

£0.56

£0.47 ex. VAT

each x

NUT 5/16 inch UNF (PACK 10)

Product Code: GHF201

Sold in pack of 10

£0.18

£0.15 ex. VAT

Pack of 10 x

SPRING WASHER 5/16 inch

Product Code: GHF332

Sold in pack of 10

£0.07

£0.06 ex. VAT

Pack of 10 x

WISHBONE ARM BUSH MGB V8 TYPE

Product Code: BHH1123

As fitted to MGB GT V8

£1.74

£1.45 ex. VAT

each x

V8 TYPE INNER WISHBONE BUSH KIT

Product Code: STN101

As fitted to MGB GT V9

£14.70

£12.25 ex. VAT

KIT x

Products not on diagram

FELT GREASE SEAL TD FRONT

Product Code: 53853

£10.08

£8.40 ex. VAT

each x

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

USED SPACER FRONT HUB

Product Code: ACF4003U

£7.20

£6.00 ex. VAT

each x

USE AHH4001K

Product Code: AHH4001

Has been superseded by

MGB-A-TD-TF Lower suspension bolt

Product Code: AHH4001K

£5.04

£4.20 ex. VAT

each x

USE AHH4002K

Product Code: AHH4002

Has been superseded by

MGA TD TF Top trunnion bolt

Product Code: AHH4002K

£11.04

£9.20 ex. VAT

each x

USE AHH5789

Product Code: AHH5546

Has been superseded by

MGB GT 65-74 MGA Front coil spring

Product Code: AHH5789

£35.88

£29.90 ex. VAT

each x

BUSH WISHBONE COMPETITION MGAB

Product Code: AHH7933C

£5.99

£4.99 ex. VAT

each x

Steering Arm RH Used

Product Code: ATB4186U

£113.94

£94.95 ex. VAT

each x

USE STN3002

Product Code: ATB4218K

Has been superseded by

MODIFIED SWIVEL PIN & LINK SET TD/TF MGA

Product Code: STN3002

£594.00

£495.00 ex. VAT

PAIR x

USE STN3002

Product Code: ATB4219K

Has been superseded by

MODIFIED SWIVEL PIN & LINK SET TD/TF MGA

Product Code: STN3002

£594.00

£495.00 ex. VAT

PAIR x

BTM TRUNNION BOLT KIT MGB/A/T

Product Code: BHH1773K

£10.74

£8.95 ex. VAT

KIT x

TOP TRUNNION BOLT KIT MGA/TD/F

Product Code: BHH1773KA

£16.98

£14.15 ex. VAT

KIT x

5/8 INCH LH STEERING ARM 1600/1622

Product Code: BTB103U

£118.80

£99.00 ex. VAT

each x

BOLT- DISC TO HUB MGC & MGA

Product Code: BTC378

£1.02

£0.85 ex. VAT

each x

NYLOC NUT THIN TYPE 3/8 INCH UNF

Product Code: GHF273

£0.16

£0.13 ex. VAT

each x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

SPLIT PIN 7/64 x 1.1/2 inch (PACK 10)

Product Code: GHF503

£0.12

£0.10 ex. VAT

Pack of 10 x

Aero type 5/16 UNF Nut

Product Code: LNZ105

£0.30

£0.25 ex. VAT

each x

MODIFIED SWIVEL PIN & LINK SET TD/TF MGA

Product Code: STN3002

£594.00

£495.00 ex. VAT

PAIR x

MODIFIED SWIVEL PIN LH

Product Code: STN3002LH

£225.00

£187.50 ex. VAT

each x

Bolt kit Front damper MGA TF/late TD

Product Code: TF70

£16.54

£13.78 ex. VAT

KIT x

USE UHN105

Product Code: UHN305

Has been superseded by

Straight Grease Nipple

Product Code: UHN105

£1.14

£0.95 ex. VAT

each x

GREASE NIPPLE 45 DEGREES

Product Code: UHN445

£1.68

£1.40 ex. VAT

each x

Stainless Steel screw 1/4 INCH UNF X 1 1/4 INCH CSK POZ

Product Code: CMZ420SS

£0.67

£0.56 ex. VAT

each x

42mm 8TPi Hub Puller tool

Product Code: 42MMHUBTOOL

£144.00

£120.00 ex. VAT

each x

MGA 1600-1622 RH Steering arm (used)disc brakes

Product Code: BTB102U

£118.80

£99.00 ex. VAT

each x

Stub axle **Used** MGA RH

Product Code: ATB4268U

£210.00

£175.00 ex. VAT

each x

Stub axle LH **Used** MGA Front suspension

Product Code: ATB4269U

£210.00

£175.00 ex. VAT

each x

Front Hub MGA Disc wheel

Product Code: BTB149

£124.11

£103.43 ex. VAT

each x

Adjustable Damper valve MGA-B-C Mid Frt & Rear

Product Code: AHH7217ADJ

£94.62

£78.85 ex. VAT

each x

MGA Caliper mounting brackets (MGB Calipers)

Product Code: BTB124-5X

£160.74

£133.95 ex. VAT

each x

RH MGA Steering Arm 5/8inch UNF (USED)

Product Code: ATB4260U

£90.00

£75.00 ex. VAT

each x

LH MGA Steering Arm 5/8inch UNF (USED)

Product Code: ATB4261U

£90.00

£75.00 ex. VAT

each x

Steering Arm LH USED MGA

Product Code: ATB4187U

£113.94

£94.95 ex. VAT

each x

Front spring pan MGB MGA *Used*

Product Code: AHH5925U

£14.34

£11.95 ex. VAT

each x

TD/TF/MGA front wheel bearing kit

Product Code: GHK2001

£43.80

£36.50 ex. VAT

KIT x

Front suspension

Item

Description

Action

Products not on diagram

Basket

Quick Search

Front suspension

Item

Description

Action

Products not on diagram

Basket

Quick Search

Get Notification
